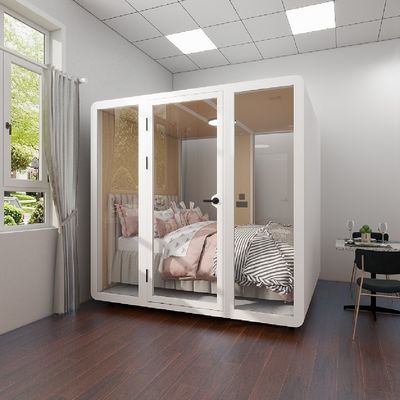

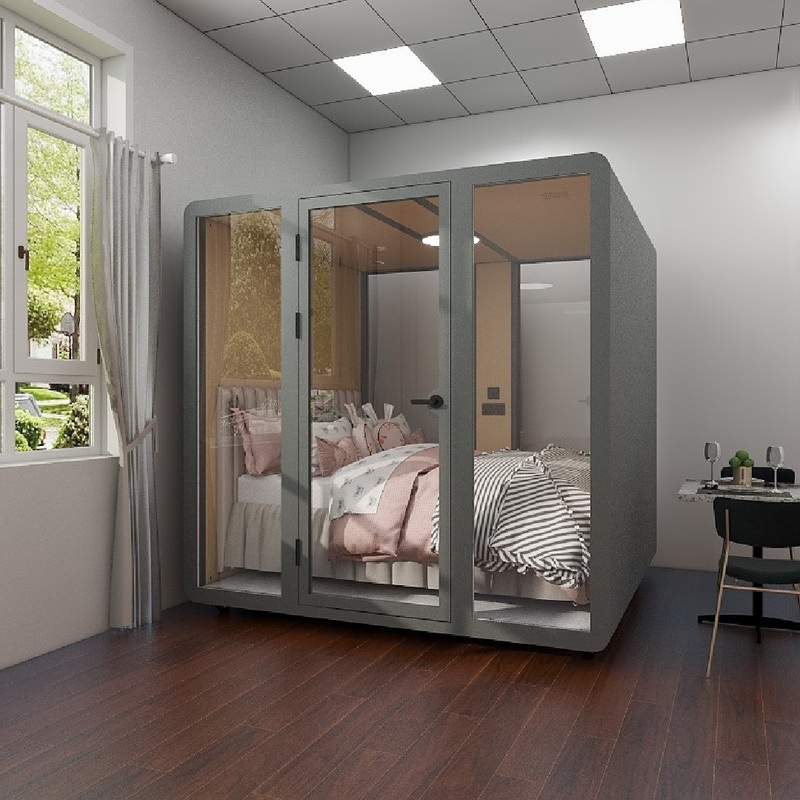

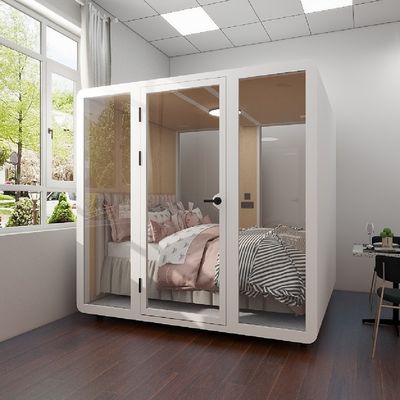

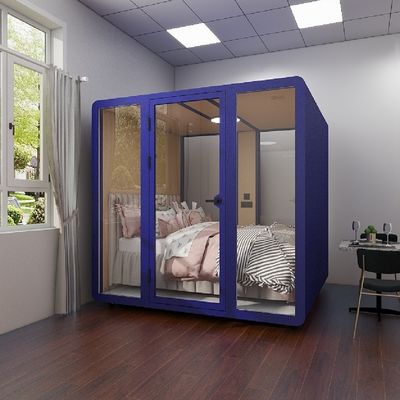

35dB Soundproof Sleeping Cabin , Modular Multi Person Office Sleep Pod

Name: 35dB Soundproof Sleeping Cabin , Modular Multi Person Office Sleep Pod
Brand: Guangzhou Yinke Technology Co., Ltd.
SKU: K230
Availability: InStock

Brand Name:	INYKO
Model Number:	K230
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, RoHS, SGS...

Features:

Ergonomic Design, Noise-cancelling Technology, Built-in Speakers

Name:

Soundproof Sleeping Cabin

Dimensions:

L 200cm X W 90cm X H 60cm

Color:

Grey

Voltage:

110-240V

Certifications:

CE, RoHS

Material:

Memory Foam

Suitable For:

Adults

Power Source:

Electricity

Usage:

Indoor

Size:

Single

Weight:

10kg

Warranty:

1 Year

Highlight:

35dB Soundproof Sleeping Cabin

Modular Office Sleep Pod

Multi Person Office Sleep Pod

Product Description

Soundproof 35±5 Decibel Sleeping Cabin Series K230

Large-Space Sleep Cabin & Multi-Person Rest Cabin

Core Functions

Sound Insulation for Sleep Enhancement: Achieves 35±5dB internal cabin sound insulation and 15dB external cabin sound insulation in 80-90dB environments.
Multi-Person Sleep Adaptation: Internal dimensions of 214cm × 206cm × 206cm support 4-6 people resting simultaneously.
Stable Structure: Frame-free modular design with 12 universal casters and 12 adjustable feet for easy movement and stability.
Privacy & Comfort: Features 8mm 3C-certified tempered glass (frosted/dimmable optional) and built-in carpet for enhanced comfort.

Sleep-Adapted Design

Basic Rest Configuration: Includes 5 quiet fans, LED warm-light ambient lamp, 2 power sockets, and 2 USB charging ports.
Furniture Integration: Comes with 120×50cm multi-functional tabletop; optional foldable rest beds and memory foam cushions.
Quiet Ventilation: 5 hidden fans with speed adjustment maintain air circulation without disturbing sleep.
Composite Sound Insulation: Steel plate + honeycomb aluminum plate + vibration damping plate + soundproof cotton construction.

Technical Specifications

Sound Insulation Level	35±5dB internal cabin; 15dB external cabin (in 80-90dB environment)
Electrical Appliances	LED warm-light ambient lamp (3-level dimming), 5 quiet variable-speed fans (≤30dB), 2 power sockets, 2 USB ports
Dimensions	External: 230×220×233cm; Internal: 214×206×206cm; Tabletop: 120×50cm
Material	Steel plate + honeycomb aluminum + soundproof cotton; 8mm tempered glass; 11mm wood panels + 9mm polyester fiber
Power Configuration	220V single-phase, ≤2000W maximum load, grounding wire required

Product Advantages

Ready-to-Use Multi-Person Adaptation Quiet Sleep Enhancement Privacy & Comfort Flexible Movement Fire-Resistant

Frame-free modular design requires no professional installation
Saves over 30% space compared to traditional single-person cabins
Composite sound insulation structure blocks external noise
Built-in non-slip carpet and multi-functional tabletop enhance comfort
12 universal casters support easy movement with stable locking mechanism

Target Customers

Open offices with employee lunch break needs
Co-working spaces and commercial complexes
On-site project teams (construction, engineering)
Customer service centers and call centers
Airport/high-speed rail business districts

Installation & Usage Notes

Floor Requirements: Must be placed on level, stable ground (error ≤ 3mm). Avoid waterlogged areas or near high-temperature sources.

Adjustable Feet Fixation: Fully lower and fix all 12 adjustable feet before use. Lock casters to prevent sliding.

Space Reservation: Maintain at least 30cm ventilation space around the pod. Reserve space for bed placement and storage.

Load-Bearing Check: Ensure floor can support ≥1000kg (pod + personnel + bedding).

Safety & Maintenance

Fire Prevention: No smoking, open flames, or flammable items inside the pod.

Surface Cleaning: Wipe steel shell with neutral detergent; clean glass with glass cleaner. Vacuum carpet regularly.

Circuit Safety: Do not modify sockets or circuits. Use waterproof covers in humid environments.

Application Scenarios

Corporate Rest Spaces: Employee lunch breaks and team rotation rest areas
Project Sites: Temporary rest for construction and engineering teams
Shared Spaces: Hourly rental rest units in co-working spaces
Transportation Hubs: Temporary sleep spaces for delayed passengers
Special Needs: Creator rest cabins and stress-relief spaces
